Waterproofing of pile heads with bitumen based liquid systems

1 Reprofiling
KÖSTER Repair Mortar R4
2 Waterproofing of pile heads
KÖSTER NB 1 Grey
3 Corrosion protection
KÖSTER Z 1
4 Corrosion protection
KÖSTER Z 2
5 Waterproofing layer
KÖSTER Deuxan 2C
KÖSTER NB 4000
6 Embedded Mesh
KÖSTER Glass Fiber Mesh
7 Waterproofing layer
KÖSTER Deuxan 2C
KÖSTER NB 4000
8 Gliding Layer
Customary PE-foil

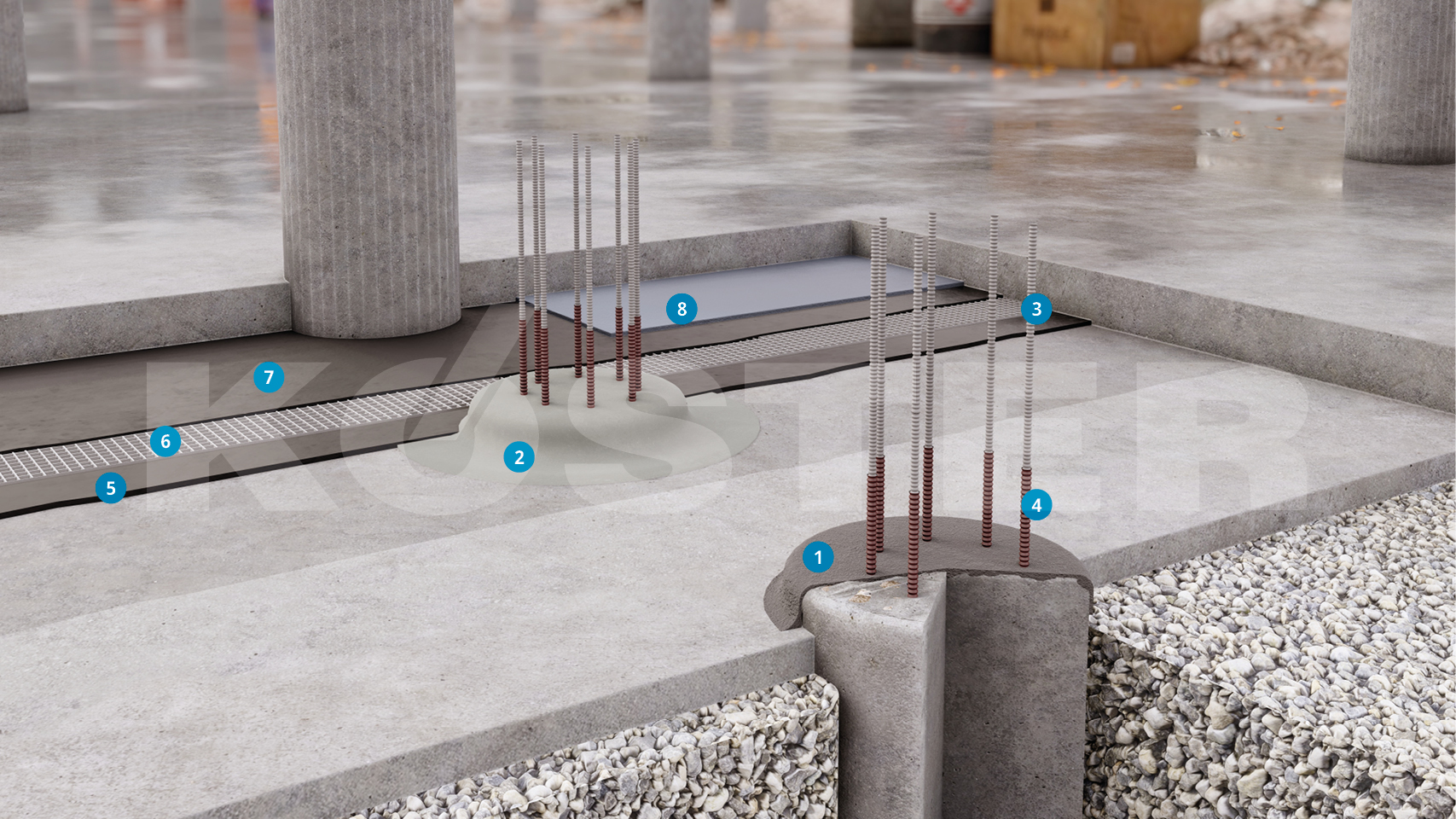

Damage in existing buildings is often caused by leaking pile foundations. Water can enter the building through the construction joints or make its way along the reinforcement steel. The waterproofing of pile heads has to withstand heavy loads from the whole building and needs to be easily connected to the area waterproofing.

At first, all non-load bearing materials and separating substances have to be removed from the surface of the pile head. After that, the surface has to be levelled and reprofiled with KÖSTER Repair Mortar or KÖSTER Repair Mortar R4. This reprofiling must also include the installation of a fillet adjacent to the pile head. KÖSTER NB 1 Grey is used to waterproof the pile head.

Mineral corrosion protection for the steel reinforcement bars is carried out with a first layer of the polymer modified special slurry KÖSTER Z 1 and a second layer of KÖSTER Z 2. KÖSTER Z 2 is red pigmented and allows a visual control of the application.

The waterproofing on top of the blinding layer is made with KÖSTER Deuxan 2C. Embed KÖSTER Glass Fiber Mesh into the fresh first layer. Before pouring the concrete for the floor slab, a gliding layer consisting of two layers of customary PE-Foil is applied between the waterproofing and the concrete. Protect the waterproofing layer from mechanical damage when continuing with the application.

Always adhere to the specifications in the respective Technical Guidelines.
